DS & A (Lists - Pointer Based)

By

| CHAPTER 10 |

Pre-requisite: C++, Knowledge on Pointers

 Two ways of implementing lists using pointers:
  • Doubly Linked Linked List
  • Singly Linked List

List ADT

  1. template<typename e> class List
  2. {
  3.      //Empty the list
  4.      virtual void clear() = 0;

  6.      //Insert value of e into the list at a position before the current position
  7.      virtual bool insert(const e&) = 0;

  9.      //Append e to the list
  10.      virtual bool append(const e&) = 0;

  12.      //Remove element at the current position
  13.      virtual bool remove(e&) = 0;

  15.      //set current position to the beginning
  16.      virtual void setBegin() = 0;

  18.      //Set current position to the end
  19.      virtual void setEnd() = 0;

  21.      //Set current position to the previous element
  22.      virtual void prev() = 0;

  24.      //Set current position to the next element
  25.      virtual void next() = 0;

  27.      //Size of list to the left of current element
  28.      virtual int leftLength() const = 0;

  30.      //Size of list to the right of current element + 1(inclusion of current element)
  31.      virtual int rightLength() const = 0;

  33.      //Set current position to pos
  34.      virtual bool setPos(int pos) = 0;

  36.      //Get value at current position
  37.      virtual bool getValue(e& item) const = 0;

  39.      //Print list
  40.      virtual void print() const = 0;
  41. };

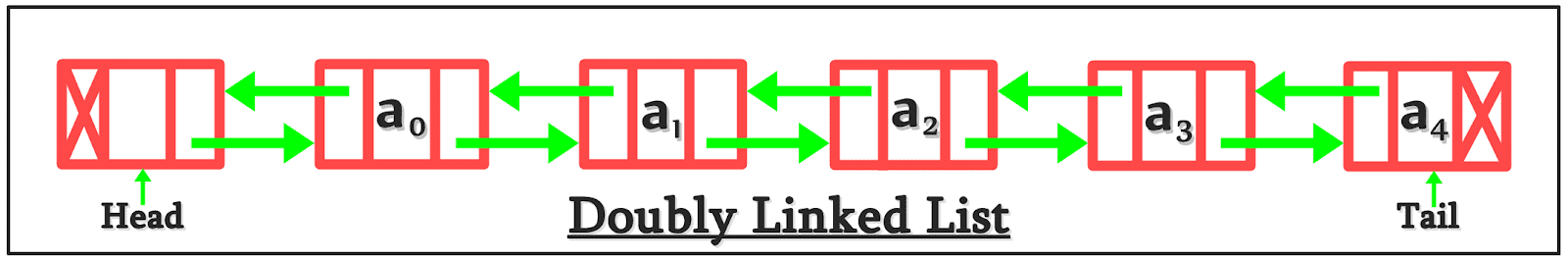

Doubly Linked List Implementation
  • Creating the Node

  1. template <typename e> class Node
  2. {
  3. public:
  4.     e element;
  5.     Node<e>* next;
  6.     Node<e>* prev;

  8.     Node(const e& elemValue,Node<e>* prevPtr = nullptr, Node<e>* nextPtr = nullptr)
  9.     {
  10.         element = elemValue;
  11.         prev = prevPtr;
  12.         next = nextPtr;
  13.     }
  14.     Node(Node<e>* prevPtr = nullptr, Node<e>* nextPtr = nullptr)
  15.     {
  16.         prev = prevPtr;
  17.         next = nextPtr;
  18.     }
  19. };

  21. template<typename e> class LList:public List<e>
  22. {
  23.     private:
  24.     Node<e>* head, *tail, *fence;
  25.     int left_length, right_length;

  27.     public:

  29.     LList()
  30.     {
  31.         fence = tail = head = new Node<e>;
  32.         left_length = right_length= 0;
  33.     }

  35.     bool insert(const e&) override;
  36.     bool append(const e&) override;
  37.     void setBegin() override;
  38.     void setEnd() override;
  39.     int leftLength() const override;
  40.     int rightLength() const override;
  41.     void prev() override;
  42.     void next() override;
  43.     bool remove(e&) override;
  44.     void clear() override;
  45.     bool setPos(int pos) override;
  46.     bool getValue(e& item) const override;
  47.     void print() const override;
  48. };
  • The Implementation
  1. template<typename e>
  2. void LList<e>::clear()
  3. {
  4.      delete fence,tail,head;
  5.      LList();
  6. }


  9. template<typename e>
  10. bool LList<e>::insert(const e& item)
  11. {
  12.      fence->next = new Node<e>(item,fence, fence-> next);
  13.      if(tail == fence) tail = fence-> next;
  14.      if (fence->next->next != nullptr)
  15.      fence->next->next->prev = fence->next;
  16.      right_length++;
  17.      return true;
  18. }


  21. template<typename e>
  22. bool LList<e>::append(const e& item)
  23. {
  24.      tail->next = new Node<e>(item,tail,tail->next);
  25.      tail = tail->next;
  26.      right_length++;
  27.      return true;
  28. }


  31. template<typename e>
  32. bool LList<e>::remove(e& item)
  33. {
  34.      if (fence->next == nullptr) return false;
  35.      item = fence->next->element;
  36.      Node<e>* temp = fence->next;
  37.      if(temp->next == nullptr)
  38.      tail = fence;
  39.      else
  40.      temp->next->prev = fence;
  41.      fence->next = temp->next;
  42.      delete temp;
  43.      right_length--;
  44.      return true;
  45. }

  47. template<typename e>
  48. void LList<e>::setBegin()
  49. {
  50.      fence = head;
  51.      right_length += left_length;
  52. left_length = 0;
  53. }

  55. template<typename e>
  56. void LList<e>::setEnd()
  57. {
  58.      fence = tail;
  59.      left_length += right_length;
  60.      right_length = 0;
  61. }

  63. template<typename e>
  64. void LList<e>::prev()
  65. {
  66.      if(fence == head) return;
  67.      fence = fence->prev;
  68. }

  70. template<typename e>
  71. void LList<e>::next()
  72. {
  73.      if(fence == tail) return;
  74.      fence = fence->next;
  75. }

  77. template<typename e>
  78. int LList<e>::leftLength() const
  79. {
  80.      return left_length;
  81. }

  83. template<typename e>
  84. int LList<e>::rightLength() const
  85. {
  86.      return right_length;
  87. }

  89. template<typename e>
  90. bool LList<e>::setPos(int pos)
  91. {
  92.      if(pos<0 && pos>left_length+right_length)
  93.      {
  94.      return false;
  95.      }
  96.      fence = head;
  97.      for(int i=0; i<pos; i++)
  98.      {
  99.           fence = fence->next;
  100.           left_length++;
  101.           right_length--;
  102.      }
  103.      right_length = right_length+left_length-pos;
  104.      left_length = pos;
  105.      return true;
  106. }

  108. template<typename e>
  109. bool LList<e>::getValue(e& item) const
  110. {
  111.      if(rightLength() == 0)
  112.      {
  113.           return false;
  114.      }
  115.      item = fence->next->element;
  116.      return true;
  117. }

  119. template<typename e>
  120. void LList<e>::print() const
  121. {
  122.      Node<e>* temp = head;
  123.      std::cout<<"[ ";
  124.      while(temp != fence)
  125.      {
  126.           std::cout<<temp->next->element<<" ";
  127.           temp = temp->next;
  128.      }
  129.      std::cout<<"| ";
  130.      while(temp != tail)
  131.      {
  132.           std::cout<<temp->next->element<<" ";
  133.           temp=temp->next;
  134.      }
  135.      std::cout<<"]\n";
  136. }

Testing the Linked List implementation

  1. int main()
  2. {
  3.     LList<int> newList; //creating a list object

  5.     //Adding values to the list
  6.     newList.append(1);
  7.     newList.append(12);
  8.     newList.append(21);
  9.     newList.append(132);
  10.     newList.append(321);
  11.     newList.append(89);
  12.     newList.append(567);
  13.     newList.append(43);
  14.     newList.append(233);
  15.     newList.append(67);

  17.     //The following values won't be added to the list because we defined the maxSize of the list to be 10
  18.     newList.append(33);
  19.     newList.append(54);
  20.     newList.append(78);

  22.     newList.print();

  24.     newList.setPos(8);              //changing the position of the fence (Remember that fence position begins from 0)
  25.     std::cout<<"\nAfter setting position to 8\n";
  26.     newList.print();

  28.     int value;                      //temporary variable to store values

  30.     //getting the previous value
  31.     newList.prev();                 //setting the fence to the PREVIOUS value
  32.     newList.getValue(value);        //value is passed by reference
  33.     std::cout<<"\nAccessing Previous Value: "<<value<<std::endl;

  35.     //getting the next value
  36.     newList.next();                 //setting the fence to the NEXT value
  37.     newList.getValue(value);        //value is passed by reference
  38.     std::cout<<"Accessing Next Value    : "<<value<<std::endl;

  40.     //Removing the current value at fence
  41.     newList.remove(value);          //value here will store the value of the removed item from the list
  42.     std::cout<<"\nAfter removing a value: \n";
  43.     newList.print();
  44.     std::cout<<"\nDisplaying Removed Value: "<<value<<std::endl;

  46.     newList.setBegin();             //sets the fence to the beginning of the list
  47.     std::cout<<"\nAfter setting position to the begin:\n";
  48.     newList.print();

  50.     //Inserting the removed value(i.e.,233) at the beginning of the List
  51.     newList.insert(value);
  52.     std::cout<<"\nAfter Inserting removed value to the list again:\n";
  53.     newList.print();
  54.     return 0;
  55. }

Singly Linked List Implementation

I leave that to you guys as an exercise. Try implementing it. All the best...
OR
You can join our Facebook group for the code

Pros and Cons Of  Array-Based List

Pros:
  • List size is not fixed. Hence, pre-allocation of memory is not necessary.
Cons:
  • Every element requires overhead.
  • Element access is complicated. Elements can't be accessed through indices.
